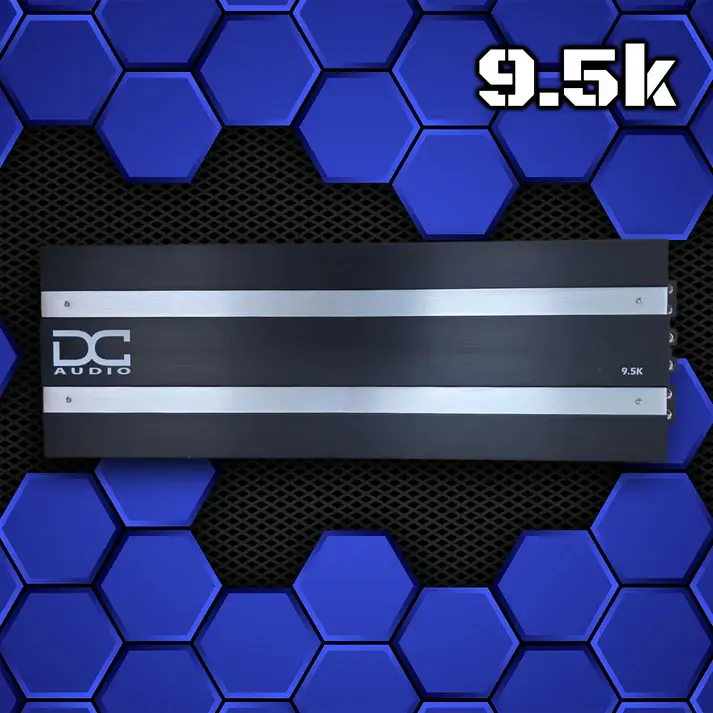

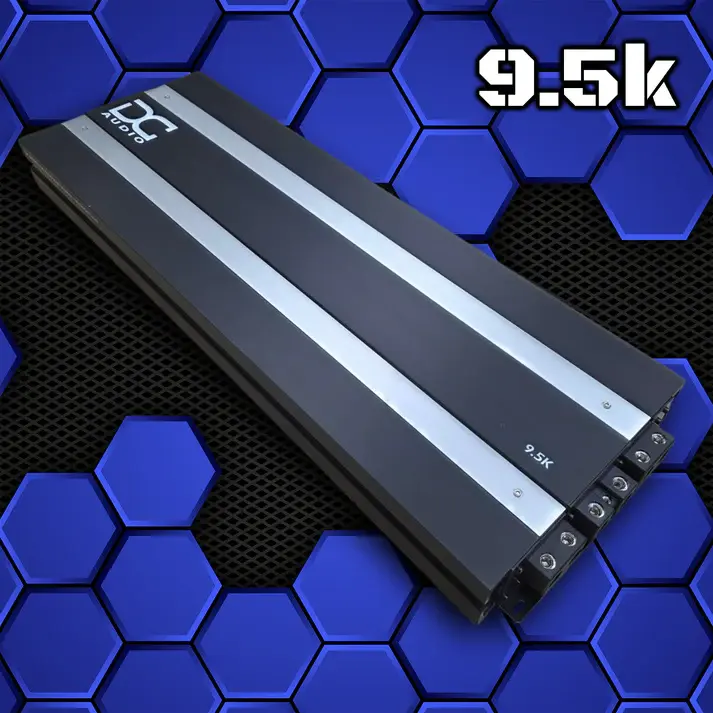

The 9.5k competition series amplifier is rated as a 9500 watt mono block. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when linked for up to 19,000 watts from a pair. It comes with a bass knob.
Output Power (RMS):
- 3,900x1 @ 4 ohms 14.4 volts
- 6,800x1 @ 2 ohms 14.4 volts
- 9,500x1 @ 1 ohms 14.4 volts
- 12,000x1 @ 1 ohm 16.0 volts
- 19,000x1 @ 2 ohm 14.4 volts LINKED
- 24,000x1 @ 2 ohm 16.0 volts LINKED
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Linkable
- Wired remote control
- Clip Light
- 8awg Speaker Terminals
- Triple 1/0awg Power and Ground Inputs
- Max charging voltage 16.2vdc
Full Specs:
| DC Amp Model: | 9.5k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 12Hz~264Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | 88db |
| Damping Factor | 400< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 300 amp x 3 |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 27.56"/700mm |
| Heatsink Width | 9.38"/238.25mm |
| Heatsink Height | 2.35"/59.6mm |
Authorized DC Audio Dealer – Canada
🇨🇦 Ships from Canada • No surprise duties or brokerage
🔧 Canadian warranty & expert support
📦 Professional install available at Valley Custom Audio
9.5k 9500 watt Mono Block Amplifier
C$3,389.99Price
