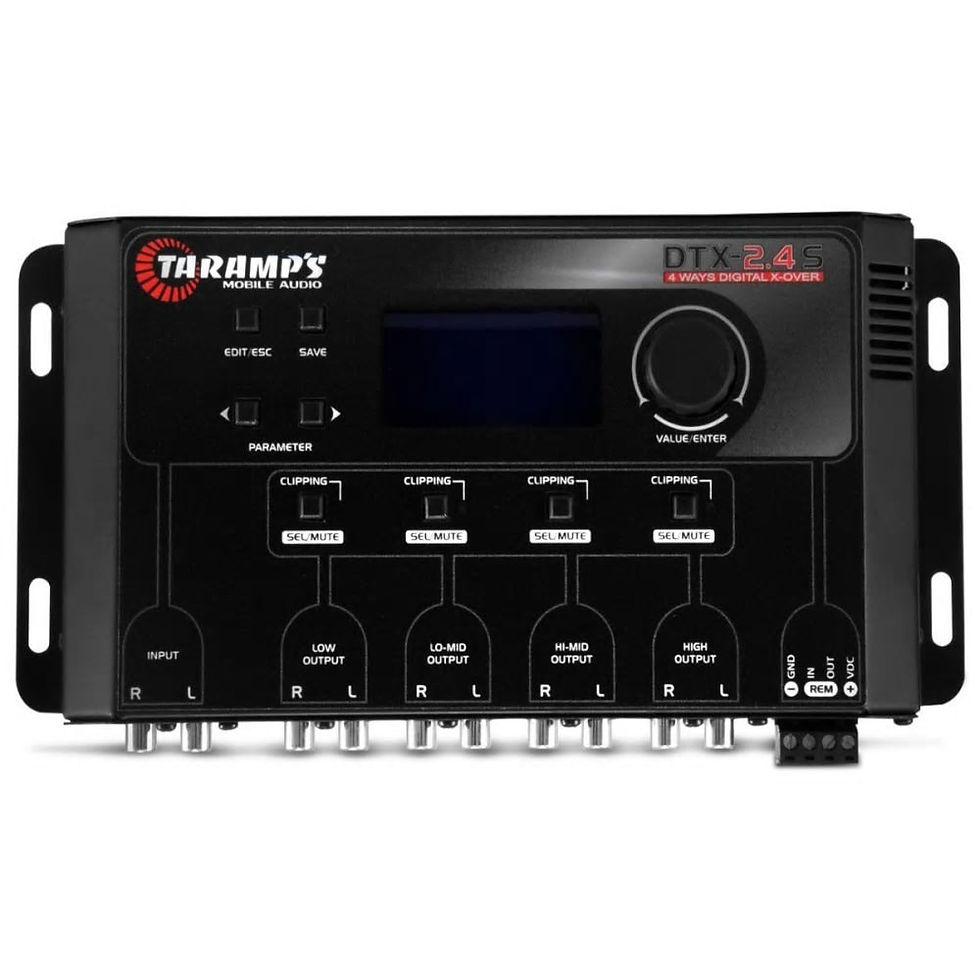

TARAMPS Digital Crossover Model # DTX 2.4S

Brand New



4 Ways



FILTERS: By DSP 24 bits/48KHz (-24dB/Oct) - 4th order (Butterworth)

LOW: (L&R)

Cutoff Freq (HPF) 9 Presets 20Hz to 60Hz

Cutoff Freq (LPF) 19 presets from 60Hz to 500Hz



LOW-MID (L&R)

Cutoff Freq (HPF) 11 presets from 60Hz to 200 Hz

Cutoff Freq (LPF) 25 presets from 200Hz to 3KHz



HI-MID (L&R)

Cutoff Freq (HPF) 21 presets from 200Hz to 2KHz

Cutoff Freq (LPF) 9 presets from 5KHz to 12KHz



HIGH (L&R)

Cutoff Freq (HPF) 17 presets from 2KHz to 12KHz



Input Impedance: 18K Ohms

Output Impedance: 470 OHMS



Max input level L/R: 4.0 V RMS @ (+14 dB)

Max Output level L/R: 4.0 V RMS @ (+14 dB)



Frequency Response: 20Hz to 23KHz (-3 dB)



Signal to Noise >90 dB

Crosstalk (separation between channels): >80 dB



Input Impedance: 10K OHMS



Supply Voltage: 10 to 16 VDC



Nominal Consumption: 0.50 A @ 12.6 VDC



Protection Systems: Reverse polarity and Short circuit in power supply input.



DIMENSIONS: 248 x 42 x 135 MM



Weight: 0.69 Kg
