Subwoofer Description
NEW for 2025!! The latest Level 2 Subwoofer
Level 2 has been redesigned to give you more than ever before. In our testing 33% more output vs the last version.

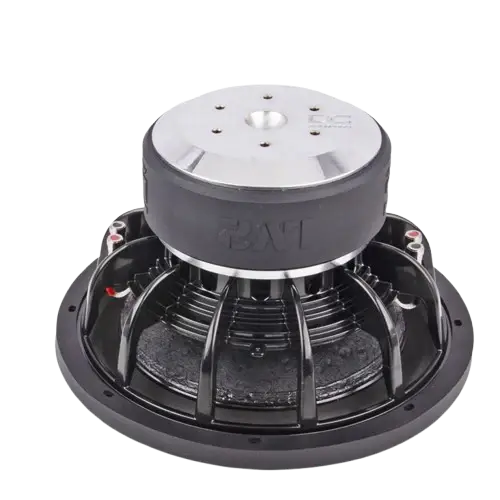

The New Level 2 has a double-stacked FEA optimized motor. A chrome top plate and T yoke, 22 mm of X-Max, progressive spiders, 2.75" voice coil, cast basket, push terminals and a rating suggestion of 750w RMS/1500w peak power handling.
This sub works great in sealed or ported enclosures and definitely gives you more bang for your buck! Made with high quality parts. Designed in the USA by American Audio Engineers.
Key Features
• Extremely rigid non-pressed paper cone assembly
• Stitched Multilayered polymer wide roll foam surround
• Polypropylene dust cover with DC logo
• 8" OD Progressive roll High Output spiders
• Heavy duty flat tinsel lead wire sewn to the spider
• Cast aluminum black frame / no invert mount
• FEA analyzed and optimized motor assembly - Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 2.75” Hi-temp copper voice coil wound on black anodized voice coil former
• Rubber magnet cover with Lv2 logo

M4 Level 2 Subwoofers
10"
12"
Mounting Depth
6.0"
6.5"
Mounting Hole Diameter
9.35"
11.00"
Outside Driver Diameter
11"
12.5"
VC Diameter
2.75"
2.75"
Displacement
.13 ft
.15ft
Power Handling rms/peak
750/1500
750/1500
Ohm Options
d2/d4
d2/d4
Sd
330 cm
502 cm
Vas
9.42 L
18.5 L
Cms
60.895 u M/N
51.797 u M/N
Mms
268.892g
283.609 g
Fs
39.33Hz
41.5Hz
Bl
22.89 N/A
22.72 N/A
Re
7.0 Ohm
7.0 Ohm
Kxm
240.487 mH
235.151 mH
Qms
3.868
3.937
Qes
0.887
1.003
Qts
0.722
0.799
Xmax
22mm
22mm
Ref SPL @1 watt
80.0 db
83.1 db
Suggest Sealed Box
.5 ft
.75 ft
Suggested Ported Box
1.0 ft
1.25 ft
