About the Product
PRE SALE ONLY - WILL SHIP ABOUT Feb 15th
Amplifier Description

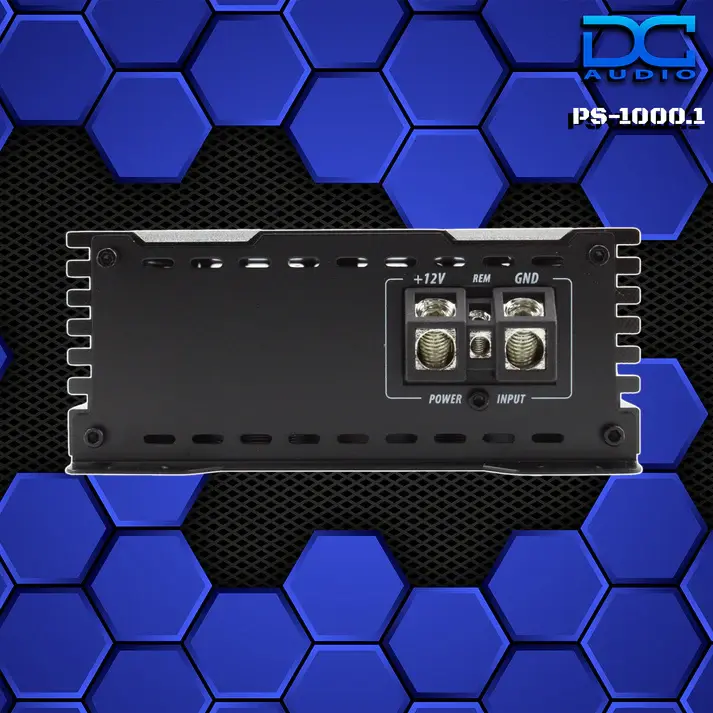

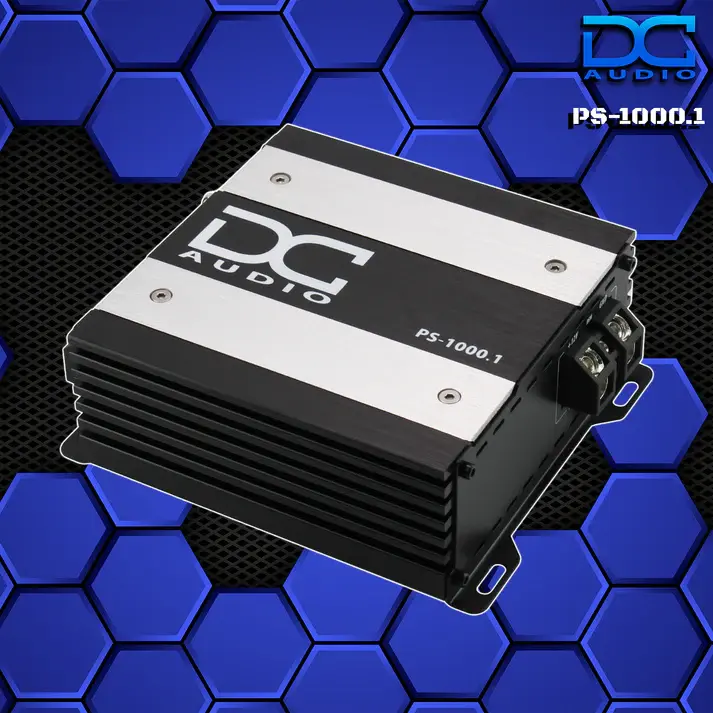

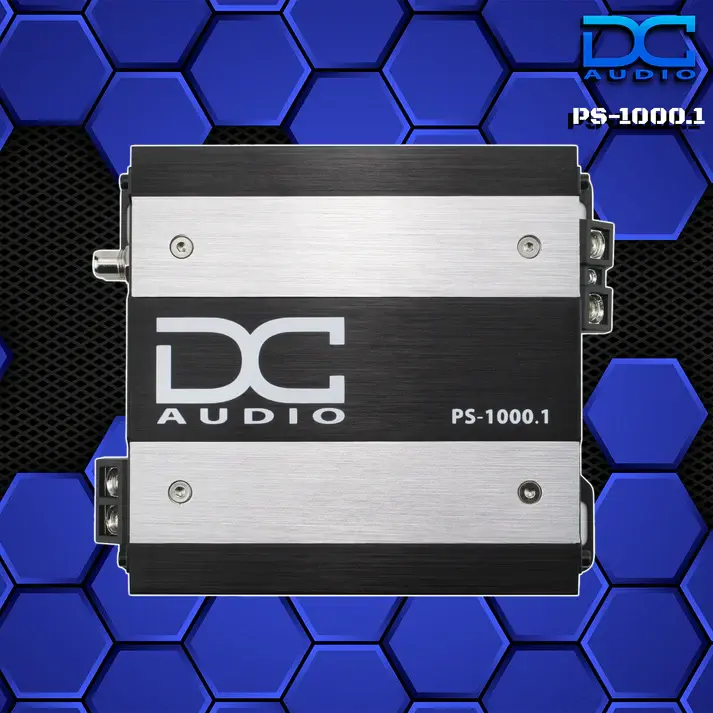

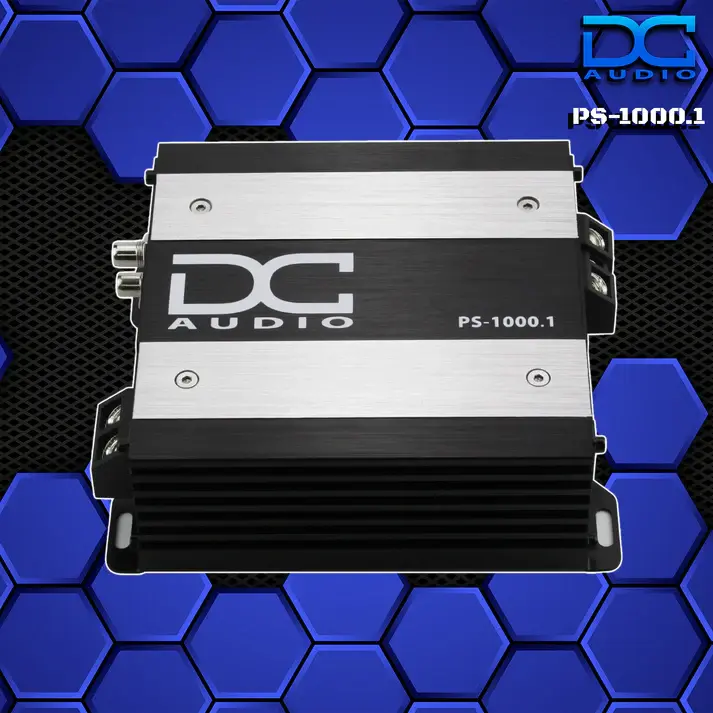

The DC-PS1000x1 is a Full Bridge compact series amplifier capable of making 1,000 watts. It can be used as a Subwoofer amp or to power stunt walls and doors. It has 4awg inputs and onboard clipping lights. It also comes with a bass knob. Designed to make more power in less space.
Output Power (RMS)
4 ohm 400Wx1 @ 14.4 Volts
2 ohm 700Wx1 @ 14.4 Volts
1 ohm mono 1000x1 @ 14.4 Volts
Key Features
1 ohm stable
Operating Voltage 9-16.5v
Variable low pass filter
Variable subsonic filter
Full Range Switch
Wired Bass Knob remote control
Bass Boost
Onboard Power / Protect / Clip light
Tiffany Style RCA Jacks
Super Compact Design
AMP SPECS:
| DC Amp Model: | PS 1000.1 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20kHz |
| 12dB / Octave Crossover | YES |
| Low Pass | 50Hz ~ 15kHz |
| Subsonic Filter | Yes |
| Bass Boost | Yes |
| Phase Shift | No |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB90 |
| Full Range Switch | Yes< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 100 amp |
| LED Status Lights | Power/Protect/Clip |
| Master/Slave | No |
| Heatsink Length | 5.4"/137mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
