About the Product
Amplifier Description

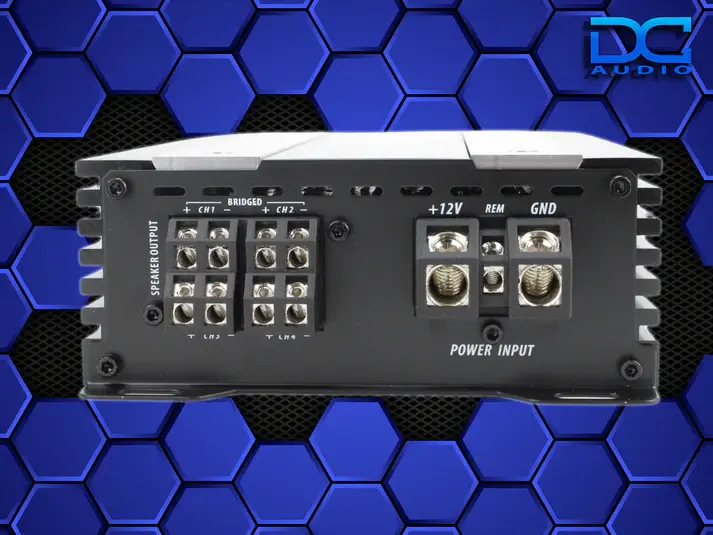

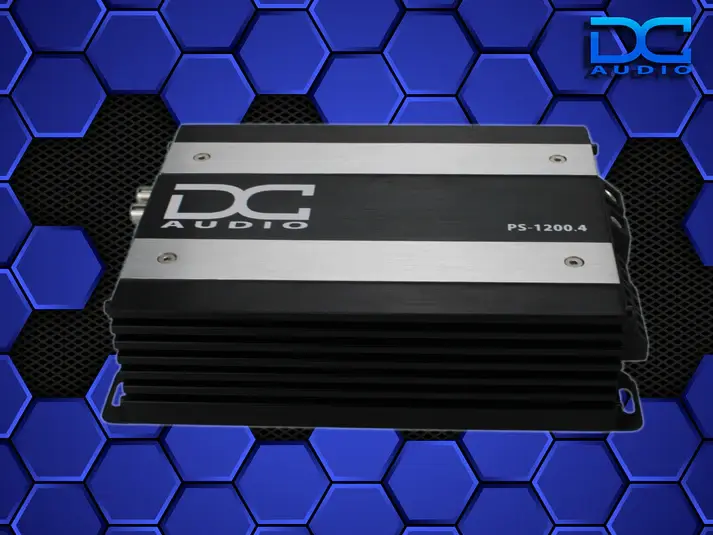

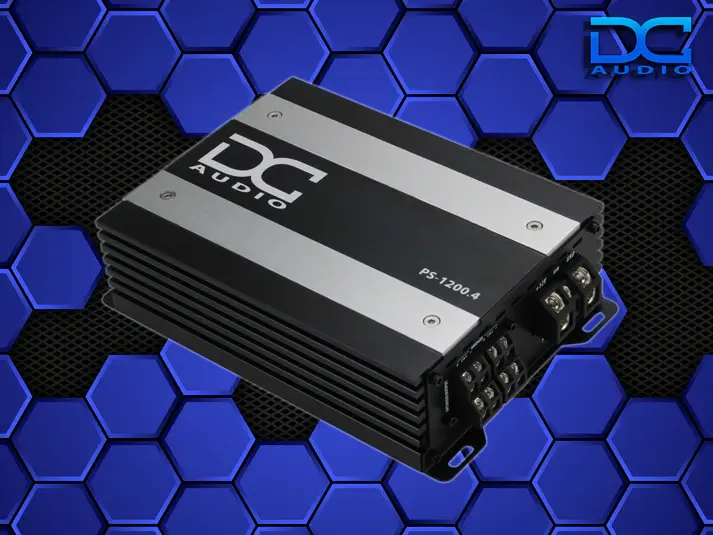

The DC-PS1200x4 is a compact series full bridge amplifier capable of making 1,200 watts. It’s High power 4 Channel amplifier. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms
Output Power (RMS)
4 ohm 190Wx4 @ 14.4 Volts
2 ohm 300Wx4 @ 14.4 Volts
4ohm rms bridged power : 600W x 2
Key Features
4 ohm bridged stable
2 ohm stereo stable
Variable low pass filter
Variable High pass filter
Full Range Output
9-16.5 Volts Capable
x10 Crossover Switches
Tiffany Style RCA Jacks
Power / Protect LED
AMP SPECS:
| DC Amp Model: | PS-1200x4 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20KHz |
| 12dB / Octave Crossover | YES |
| High / Low Pass | 50Hz ~ 500Hz |
| Subsonic Filter | NO |
| Bass Boost @45hz | NO |
| Phase Shift | NO |
| Remote Control | NO |
| Clip Indicator | No |
| Signal to Noise Ratio | dB90 |
| Damping Factor | 90< |
| THD @ 4ohms | Less than 1% |
| Fuse Rating | External 100 amp |
| LED Status Lights | Power/Protect |
| Master/Slave | NO |
| Heatsink Length | 7.76"/197mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
